台湾JGH久冈J-RVCA Series引导式溢流阀

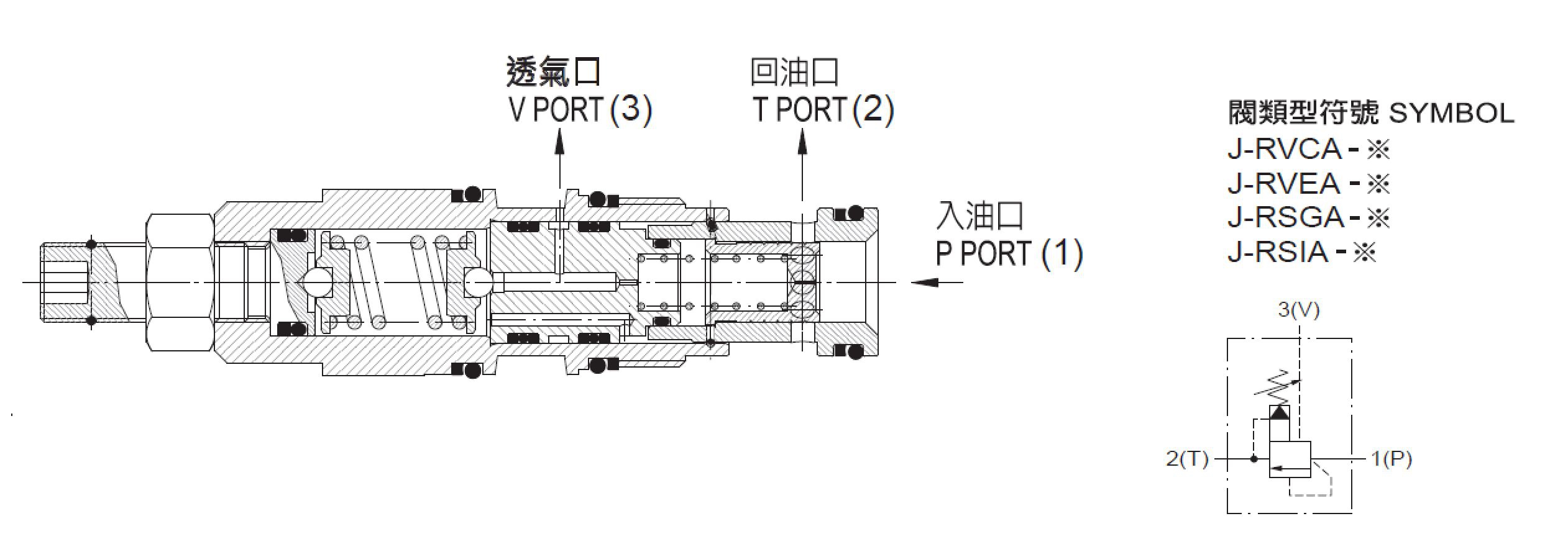

| SYMBOL J-RVCA-※-10 J-RVEA-※-10 J-RVGA-※-10 |
 |
SPECIFICATION
| MODLE | MAX.OPERATING PRESSURE kgf/cm2 |
PRESSURE TYPE | PRESSURE ADJ. RANGE kgf/cm2 |
MAX. FLOW l/min |
WEIGHT kg |
|---|---|---|---|---|---|
| J-RVCA-※ | 350 | A B C |
A:7-210
B:3.5-105 C:10-420 D:2-60 E:7-280 |
60 | 0.17 |
| J-RVEA-※ | A B C D E | 120 | 0.29 | ||
| J-RVGA-※ | 240 | 0.64 |
HOW TO ORDER
| J | – | RVCA | – | A | – | L | – | 10 | ||
|---|---|---|---|---|---|---|---|---|---|---|
 |
DESIGN NUMBER | |||||||||
|
KNOB TYPE L:INNER HEXANGULAR BOLT ROD ADJUST. K:HAFT TURNING KNOB BOLT ROD ADJUST. |
|||||||||
|
PRESSURE ADJUSTING RANGE A:7-210 kgf/cm2B:3.5-105 kgf/cm2 C:10-420 kgf/cm2D:2-60 kgf/cm2 E:7-280 kgf/cm2 |
|||||||||
 |
VALVE SIZE RVCA:60 l/minRVEA:120 l/min REGA:240 l/min |
|||||||||
|
SERIES NUMBER | |||||||||
