PR3齿轮泵-台湾HYDROMAX新鸿

ORDER CODES

Model Name	PR3
Delivery Capacity	2,3,4,6,8,11,13,14,17,19,23,25,28,30,33,35
Rotation Direction	R Clockwise
	L Counter-Clockwise
Shaft Type*	X Straight Shaft
	Y Spline Shaft
	Z Taper Shaft
Flange Mounting Type	2B SAE 2-bolt
	4BD DIN 4-bolt
	4BE European 4-bolt
Inlet and Outlet*	F flange type(F1~F6)
	G G,BSP,PF(G1~G2)
	P PT(P1~P2)
	U UNF(U1~U2)

SPECIFICATIONS

Model	Accurate	Pressure	(kgf/cm2)	Speed	(r.p.m)		Weight(kg)
	Displacement
	Capacity
	(cc/rev)	normal	Max	Rate	Max	Min
PR3-2	2	210		1800	4000	700	2.73
PR3-3	3	210		1800	4000	700	2.77
PR3-4	4	210		1800	4000	700	2.83
PR3-6	6	210		1800	4000	700	2.91
PR3-8	8.4	210		1800	3500	700	2.99
PR3-11	11	210		1800	3000	600	3.14
PR3-13	13	210		1800	3000	600	3.24
PR3-14	14.3	210		1800	3000	500	3.3
PR3-17	16.5	210		1800	3000	500	3.41
PR3-19	19.2	210		1800	3000	500	3.53
PR3-23	23	210		1800	3000	500	3.73
PR3-25	25	175	210	1800	2800	500	3.78
PR3-28	28	175	210	1800	0	500	3.89
PR3-30	30	175	210	1800	0	500	3.99
PR3-33	33	140	175	1200	0	500	4.14
PR3-35	35	125	140	1200	0	500	4.25

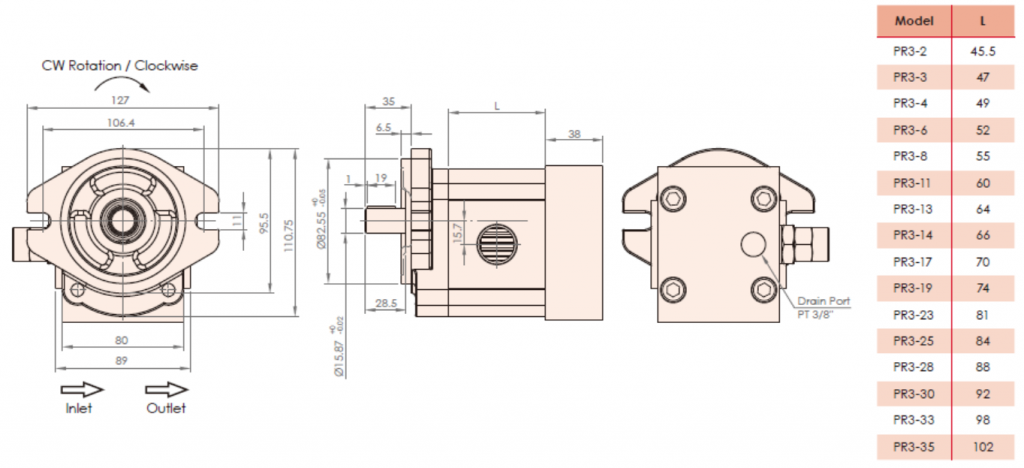

DIMENSIONS(UNIT:mm)

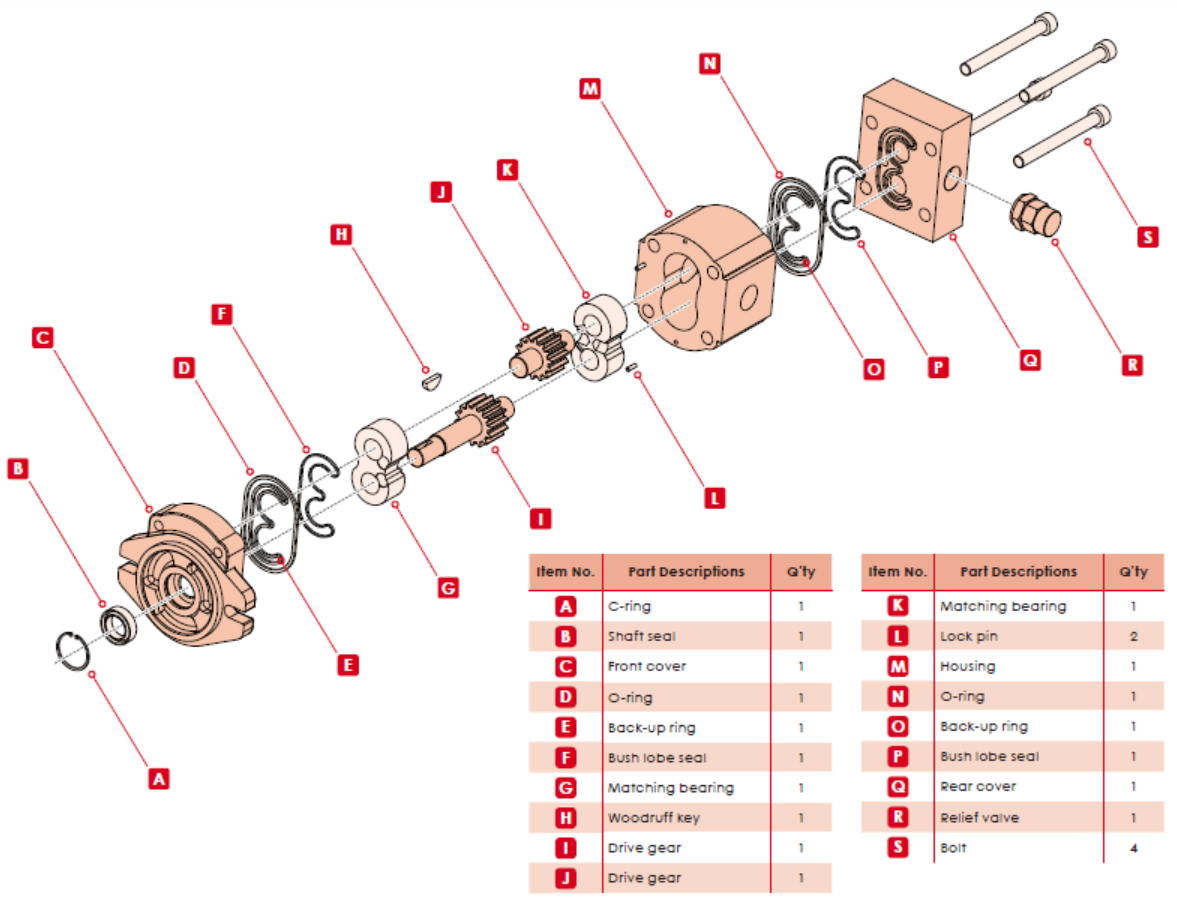

DECOMPOSITION CHARTS
