DFMN-302A_台湾HYDROMAX齿轮泵

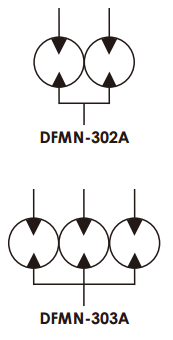

SCHEMATIC SYMBOL
ORDER CODES
| Model Name | DFMN-3 |
| Stations | 02A 2 stations |
| 03A 3 stations | |
| 04A 4 stations | |
| 05A 5 stations | |
| 06A 6 stations | |
| 07A 7 stations | |
| Flow Rate | 4,6,8,11,13,14,17,19,23,25,28,30,35 |
| Functional Type | M synchronous flow divider MR with relief valve |
SPECIFICATIONS
| Model | Accurate | Pressure (kgf/cm2) |
Speed | (r.p.m) | ||
| Displacement | Port Size | (PT) | ||||
| Capacity | ||||||
| (cc/rev) | normal | Loaded | Unloaded | |||
| DFMN-30*A-4M | 4 | 210 | 1000 | 2000 | 3/4″ | 1/2″ |
| DFMN-30*A-6M | 6 | 210 | 1000 | 2000 | 3/4″ | 1/2″ |
| DFMN-30*A-8M | 8.4 | 210 | 1000 | 2000 | 3/4″ | 1/2″ |
| DFMN-30*A-11M | 11 | 210 | 1000 | 2000 | 3/4″ | 1/2″ |
| DFMN-30*A-13M | 13 | 210 | 1000 | 2000 | 3/4″ | 1/2″ |
| DFMN-30*A-14M | 14.3 | 210 | 1000 | 2000 | 3/4″ | 1/2″ |
| DFMN-30*A-17M | 16.5 | 210 | 1000 | 2000 | 3/4″ | 1/2″ |
| DFMN-30*A-19M | 19.2 | 210 | 1000 | 2000 | 3/4″ | 1/2″ |
| DFMN-30*A-23M | 23 | 210 | 1000 | 2000 | 3/4″ | 1/2″ |
| DFMN-30*A-25M | 25 | 210 | 1000 | 2000 | 3/4″ | 3/4″ |
| DFMN-30*A-28M | 28 | 210 | 1000 | 2000 | 3/4″ | 3/4″ |
| DFMN-30*A-30M | 30 | 210 | 1000 | 2000 | 3/4″ | 3/4″ |
| DFMN-30*A-35M | 35 | 210 | 1000 | 2000 | 3/4″ | 3/4″ |
