台湾HYDROMAX新鸿HGP-33A齿轮泵

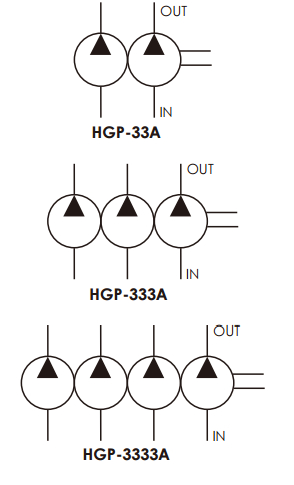

SCHEMATIC SYMBOL
ORDER CODES
| Model Name | HGP-33A,HGP-333A,HGP-3333A |
| Mounting | F Flange Type |
| L Foot Type | |
| Delivery Capacity | 2,3,4,6,8,11,13,14,17,19,23,25,28,30,33,35 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type | X Straight Shaft |
| Y Spline Shaft | |
| Z Taper Shaft | |
| Flange Mounting Type | 2B SAE 2-bolt |
| 4BD DIN 4-bolt | |
| 4BE European 4-bolt | |
| Inlet and Outlet* | F flange type(F1~F6) |
| G G,BSP,PF(G1~G2) | |
| P PT(P1~P2) | |
| U UNF(U1~U2) |
SPECIFICATIONS
| Model | Accurate | Pressure | (kgf/cm2) | Speed | (r.p.m) | Weight(kg) | |
| Displacement | |||||||
| Capacity | |||||||
| (cc/rev) | normal | Max | Rate | Max | Min | ||
| HGP-33A-F22R | 2+2 | 210 | 250 | 1800 | 4000 | 700 | 3.42 |
| HGP-33A-F33R | 3+3 | 210 | 250 | 1800 | 4000 | 700 | 3.48 |
| HGP-33A-F44R | 4+4 | 210 | 250 | 1800 | 4000 | 700 | 4.38 |
| HGP-33A-F66R | 6+6 | 210 | 250 | 1800 | 4000 | 700 | 4.46 |
| HGP-33A-F88R | 8+8 | 210 | 250 | 1800 | 3500 | 700 | 4.58 |
| HGP-33A-F1111R | 11+11 | 210 | 250 | 1800 | 3000 | 600 | 5.20 |
| HGP-33A-F1313R | 13+13 | 210 | 250 | 1800 | 3000 | 600 | 5.40 |
| HGP-33A-F1414R | 14.3+14.3 | 210 | 250 | 1800 | 3000 | 500 | 5.52 |
| HGP-33A-F1717R | 16.5+16.5 | 210 | 250 | 1800 | 3000 | 500 | 5.74 |
| HGP-33A-F1919R | 19.2+19.2 | 210 | 250 | 1800 | 3000 | 500 | 5.98 |
| HGP-33A-F2323R | 23+23 | 210 | 250 | 1800 | 3000 | 500 | 6.38 |
| HGP-33A-F2525R | 25+25 | 175 | 210 | 1800 | 2800 | 500 | 6.48 |
| HGP-33A-F2828R | 28+28 | 175 | 210 | 1800 | 2500 | 500 | 6.70 |
| HGP-33A-F3030R | 30+30 | 175 | 210 | 1800 | 2500 | 500 | 6.90 |
| HGP-33A-F3333R | 33+33 | 140 | 175 | 1200 | 2500 | 500 | 7.2 |
| HGP-33A-F3535R | 35+35 | 125 | 140 | 1200 | 2500 | 500 | 7.42 |

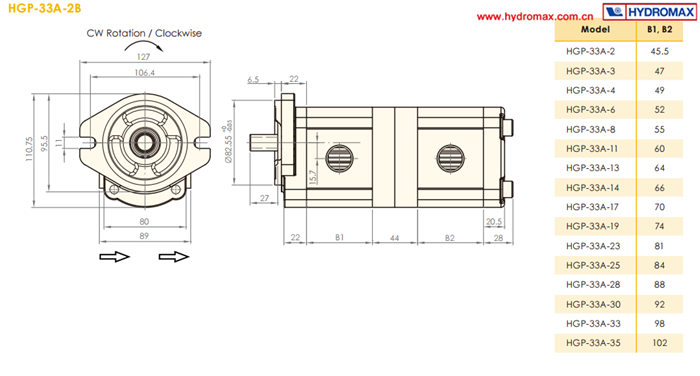

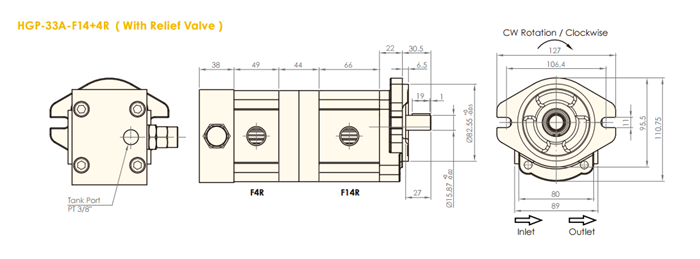

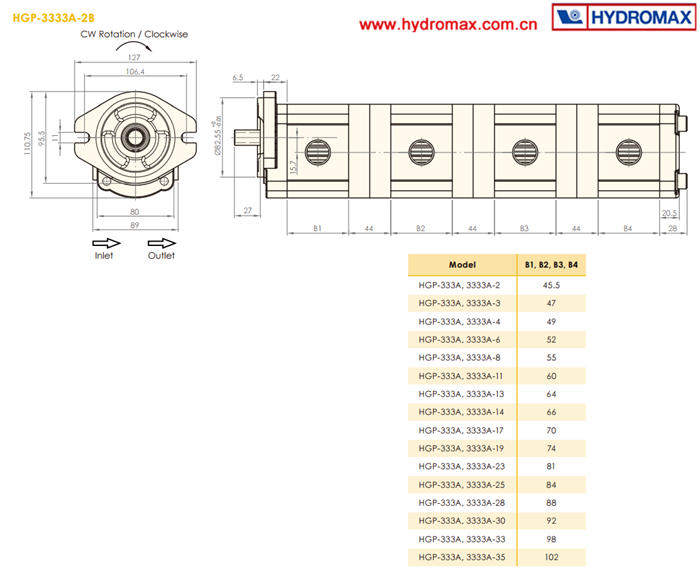

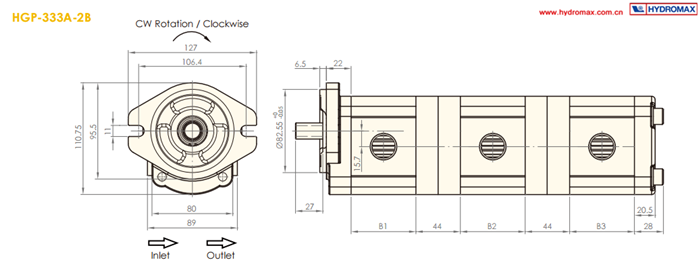

DIMENSIONS(UNIT:mm)
