台湾HYDROMAX新鸿HGP-2A齿轮泵
SCHEMATIC SYMBOL
ORDER CODES
| Model Name | HGP-2A |
| Mounting | F Flange Type |
| L Foot Type | |
| Delivery Capacity | 2,3,4,5,6,8,9,11,12 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type* | X Straight Shaft |
| Y Spline Shaft | |
| Z Taper Shaft | |
| W Tang shaft | |
| Flange Mounting Type | 4BJ JIS 4-bolt |
| Inlet and Outlet* | F flange type(F1) |
| G G,BSP,PF(G1~G2) | |
| P PT(P1~P2) |
SPECIFICATIONS
| Model | Accurate | Pressure | (kgf/cm2) | Speed | (r.p.m) | Weight(kg) | |
| Displacement | |||||||
| Capacity | |||||||
| (cc/rev) | normal | Max | Rate | Max | Min | ||
| HGP-2A-F2R | 2 | 210 | 250 | 1800 | 5000 | 1000 | 1.69 |
| HGP-2A-F25R | 2.5 | 210 | 250 | 1800 | 5000 | 850 | 1.7 |
| HGP-2A-F3R | 3 | 210 | 250 | 1800 | 5000 | 850 | 1.7 |
| HGP-2A-F4R | 4 | 210 | 250 | 1800 | 4500 | 800 | 1.71 |
| HGP-2A-F5R | 5 | 210 | 250 | 1800 | 3500 | 700 | 1.71 |
| HGP-2A-F6R | 6 | 210 | 250 | 1800 | 3500 | 700 | 1.72 |
| HGP-2A-F8R | 7.5 | 210 | 250 | 1800 | 3000 | 600 | 1.74 |
| HGP-2A-F9R | 9 | 210 | 250 | 1800 | 2500 | 550 | 1.74 |
| HGP-2A-F11R | 10.5 | 210 | 250 | 1800 | 2000 | 500 | 1.74 |
| HGP-2A-F12R | 12 | 175 | 210 | 1800 | 2000 | 500 | 1.76 |

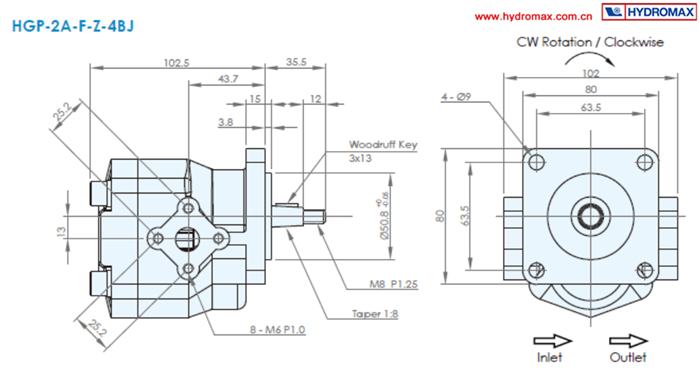

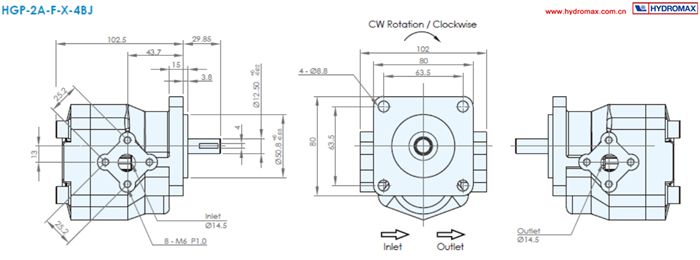

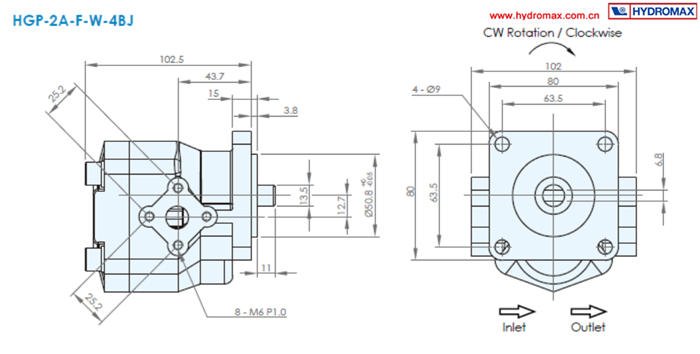

DIMENSIONS(UNIT:mm)

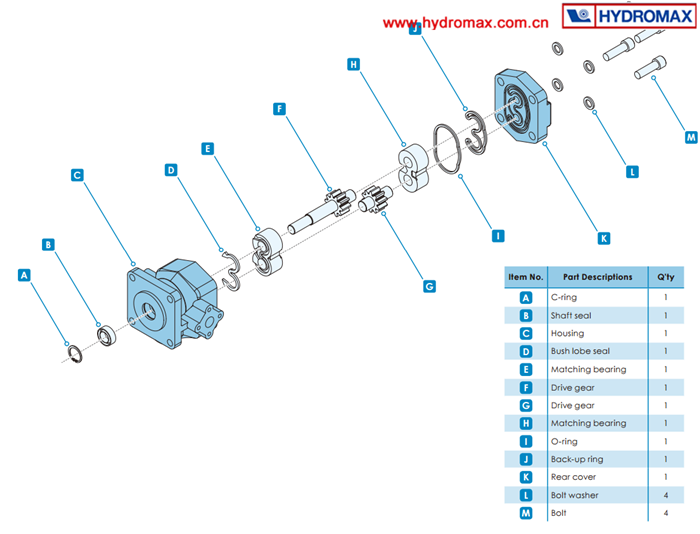

DECOMPOSITION CHARTS

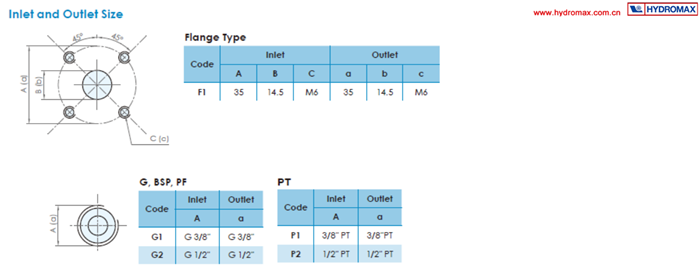

ADDITONAL DIMENSION
