台湾HYDROMAX新鸿HGP-22A齿轮泵

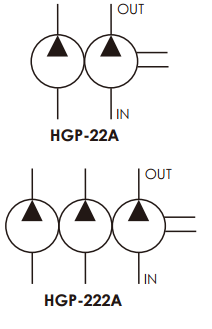

SCHEMATIC SYMBOL
ORDER CODES
| Model Name | HGP-22A,HGP-222A |
| Mounting | F Flange Type |
| L Foot Type | |
| Delivery Capacity | 2,3,4,5,6,8,9,11,12 |
| Rotation Direction | R Clockwise |
| L Counter-Clockwise | |
| Shaft Type* | X Straight Shaft |
| Y Spline Shaft | |
| Z Taper Shaft | |
| W Tang shaft | |
| Flange Mounting Type | 4BJ JIS 4-bolt |
| Inlet and Outlet* | F flange type(F1) |
| G G,BSP,PF(G1~G2) | |
| P PT(P1~P2) |
SPECIFICATIONS
| Model | Accurate | Pressure | (kgf/cm2) | Speed | (r.p.m) | Weight(kg) | |
| Displacement | |||||||
| Capacity | |||||||
| (cc/rev) | normal | Max | Rate | Max | Min | ||
| HGP-22A-F22R | 2+2 | 210 | 250 | 1800 | 4000 | 700 | 3.38 |
| HGP-22A-F33R | 3+3 | 210 | 250 | 1800 | 4000 | 700 | 3.40 |
| HGP-22A-F44R | 4+4 | 210 | 250 | 1800 | 4000 | 700 | 3.40 |
| HGP-22A-F55R | 5+5 | 210 | 250 | 1800 | 4000 | 700 | 3.42 |
| HGP-22A-F66R | 6+6 | 210 | 250 | 1800 | 3500 | 700 | 3.42 |
| HGP-22A-F88R | 8+8 | 210 | 250 | 1800 | 3000 | 600 | 3.48 |
| HGP-22A-F99R | 9+9 | 210 | 250 | 1800 | 2500 | 550 | 3.48 |
| HGP-22A-F1111R | 11+11 | 210 | 250 | 1800 | 2000 | 500 | 3.48 |
| HGP-22A-F1212R | 12+12 | 175 | 210 | 1800 | 2000 | 500 | 3.52 |

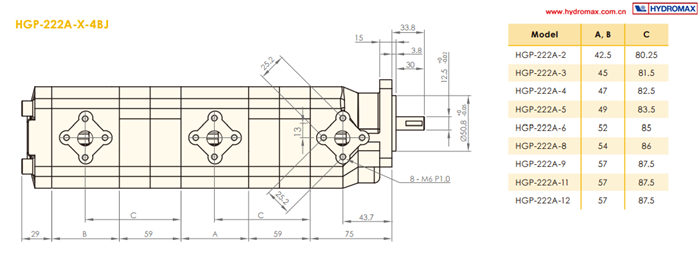

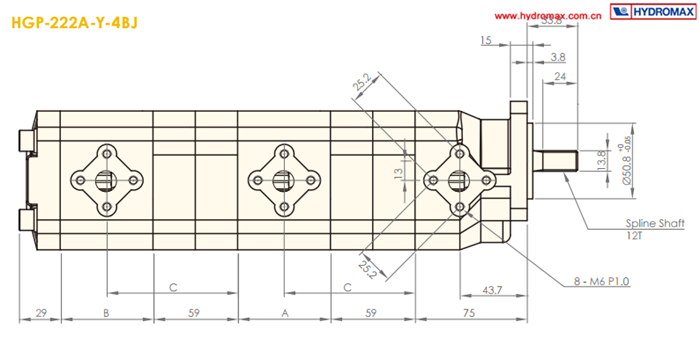

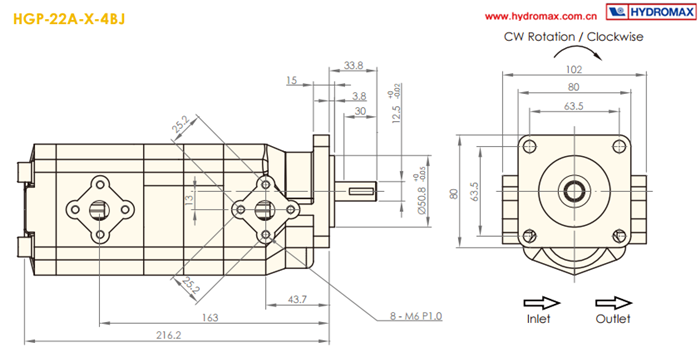

DIMENSIONS(UNIT:mm)
